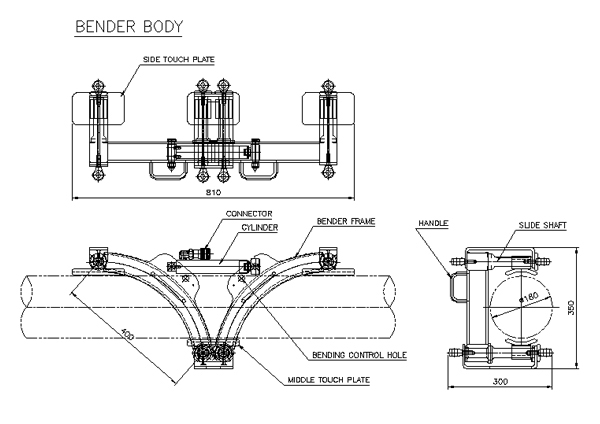

1. Bender Body
1) Max. Application cable : 345kV 2500SQ
2) Max. cable out dia. : 180mm
3) Min radial : 1100 mm
4) Max. radial : 3400 mm
5) Dimensions(LxWxH) : 810 x 300 x 350 mm
6) Weight : 25kg |
2. Pump
1) Maker : IZUMI
2) Model No. : R14E-H
3) Motor voltage : 230 V, Single Phase
4) Motor Capacity : 340W
5) High pressure stage : 20-700 bar
6) Weight : 15 kg
|
3. Hose
1) H,Y,D Hose Length : 2 m
2) Remote control switch : 3m
3) Power cable : 3m
|
