Model No. |

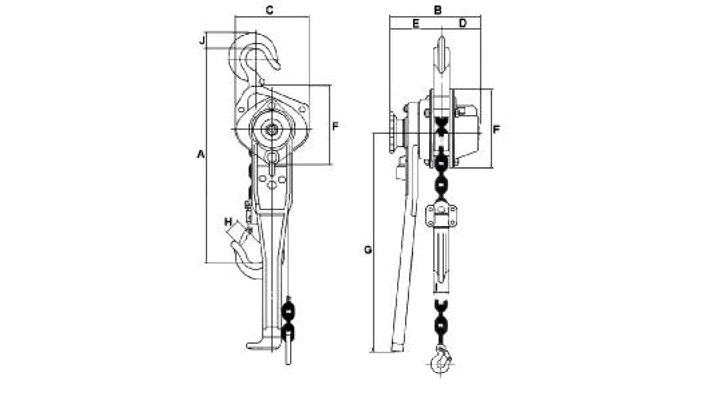

Dimensions(mm) |
Working load
(kgf) |
Hook to hook distance
|
Stroke
(m)
|
Chain dia.
(mm)
|
W’t
(kg)
|
| A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
YD-1 |
240 |
148 |
124 |
59 |
89 |
124 |
256 |
25 |
20 |
24 |
750 |
247 |
1.5 |
Ø6.3 |
6.5 |
YD-2 |
330 |
171 |
141 |
73 |
98 |
148 |
410 |
32 |
30 |
29 |
1,500 |
330 |
1.5 |
Ø71 |
11 |
YD-3 |
400 |
206 |
185 |
90 |
116 |
185 |
410 |
43 |
33 |
41 |
3,000 |
425 |
1.5 |
Ø9.5 |
21 |
| YD-4 |
550 |
206 |
248 |
90 |
116 |
185 |
410 |
50 |
40 |
51.5 |
6,000 |
620 |
1.5 |
Ø9.5 |
37 |
|
