Model No. |
LD-150 |
LD-300 |
Vertical working load(kg) |
1,500 |
3,000 |
Horizontal working load(kg) |
2,500 |
5,000 |
Handle length(mm) |
1,040 |
1,170 |
Max. rope dia.(mm) |
11.5 |
16.3 |
Speed(m/min) |
3 |
3 |
| Rope length(m) |
20 |
10 |
| Weight(kg-exclude wire) |
17 |
25 |
| Weight of wire rope(kg) |
13.5(20m) |
14(10m) |
|

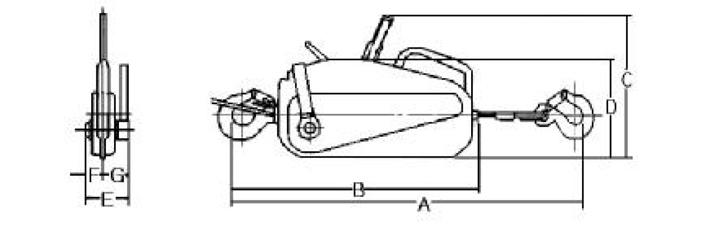

Model No. |
LD-150 |
LD-300 |
A |
850 |
1.100 |
B |
600 |
857 |
C |
370 |
390 |
D |
238 |
260 |
E |
142 |
157 |
| F |
57.5 |
50 |
| G |
84.5 |
107 |
|
