Model No. |
Rope dia.(mm) |

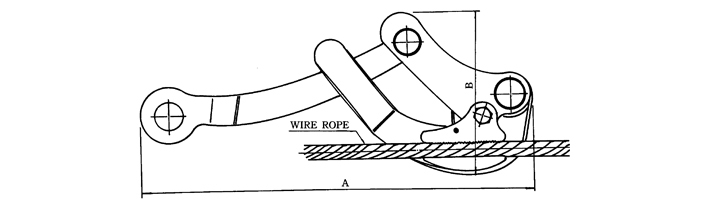

Dimensions(mm) |
Working load(kgf) |
Weight(Kg) |
| A |
B |
CW85-B1 |
Φ1.5-Φ10 |
180 |
90 |
2,000 |
0.8 |
CW85-B2 |
Φ5-Φ15 |
200 |
110 |
2,500 |
1.4 |
CW85-B3 |
Φ8-Φ20 |
230 |
125 |
3,000 |
1.8 |
CW85-B4 |
Φ4-Φ18 |
190 |
100 |
1,500 |
1.3 |
CW85-B5 |
Φ10-Φ23 |
220 |
125 |
2,000 |
1.9 |
CW85-B6 |
Φ10-Φ25 |
230 |
145 |
2,000 |
2.4 |
|
