사양

Model No.	Capacity	Grad.	Loading direction	Adapting bolt.	Max. hand power (N)	Efective length	Overall length	Square drive size	W’T (kg)
Model No.	kgf.cm	Kgf/cm	Loading direction	Hi-	Max. hand power (N)	Efective length	Overall length	Square drive size	W’T (kg)
60QL	20~60	1	RIGHT	M4(M4.5)	4.8	125	172	6.35	0.13
120QL	40~120	2		M5,M6	9.2	130	185		0.19
225QL	50~225	2.5		(M7)	14.5	155	217	9.53	0.24
450QL	100~450	5		M8	25	180	250.5	9.53	0.42
900QL	200~900	10		M10	34.6	260	331.2	12.7	0.68
1400QL	400~1400	10		M12	43.8	320	393		0.78
1800QL	400~1800	20		M14	45	400	475.5		1.4
2800QL	4~28	0.2		M16	46.6	600	676.5	19.05	2.3
4200QL	6~42	0.3		(M18)	46.6	900	980	19.05	3.9

소켓선택

1. The square head(drive) of each torque wrench is sized as shown in specifications.
2. See the following table for the width across flats of major screws.
3 Please select a suitable socket based on the size of square head and the width across flats

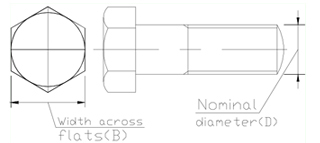

Nominal diameter(D)	Hex. hd bolt(B)	Small hd bolt(B)	Reinforced hd bolt for friction grip joints(B)
M8	13	12	tandard
M10	17	14
M12	19	17	22
(M14)	22	19
M16	24	22	27
M18	27	24	-
M20	30	27	32
(M22)	32	30	36
M24	36	32	41
(M27)	41	36	46
M30	46	41	50
(M33)	50	46	-
M36	55	50	-
(M39)	60	55	-
