Type |
Model No.
|
Dimensions(mm) |
Applicable ACSR
dia. (㎟)
|
Working
load(kgf)
|
Weight
(kg)
|
| A |
B |
C |
D |
ACSR |
HDCC&OPGW |

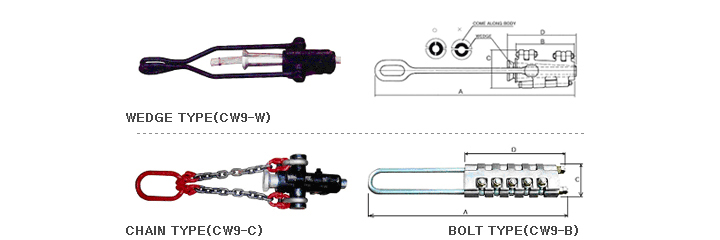

WEDGE
(CHAIN) |
CW9-W2 |
665 |
175 |
124 |
235 |
38-170 |
55-180 |
3,500 |
7 |
CW9-W3 |
780 |
200 |
138 |
261 |
200-410 |
200-500 |
6,000 |
10 |
CW9-W4 |
820 |
225 |
156 |
305 |
420-810 |
|
7,000 |
12 |
| BOLT |
CW9-B2 |
590 |
|
115 |
300 |
38-170 |
|
2,500 |
7 |
| CW9-B3 |
660 |
|
170 |
345 |
200-480 |
|
4,000 |
14 |
|
