Model No. |
applicable block
|

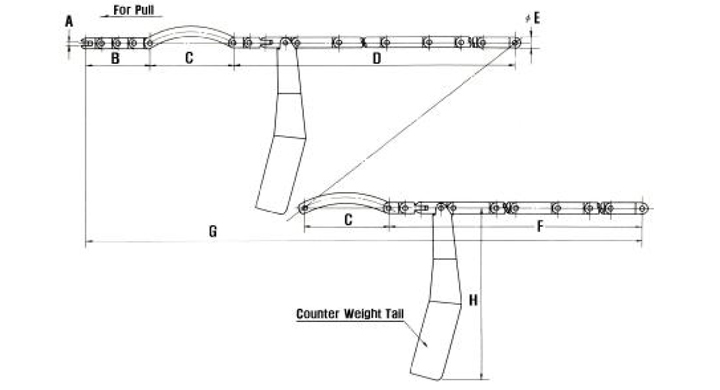

Dimensions(mm) |
Counter Weight(kg)
|
Working
load(kgf)
|
Weight
(kg)
|
| A |
B |
C |
D |
E |
F |
G |
H |
CW28-S1 |
Φ450 |
17.6 |
250 |
400 |
1,40 |
40 |
1,40 |
3,80 |
775 |
15x2ea |
2,000 |
68 |
CW28-S2 |
Φ600 |
17.8 |
304 |
400 |
1,55 |
50 |
1,55 |
4,20 |
760 |
23x2ea |
3,500 |
110 |
CW28-S3 |
Φ600 |
22 |
380 |
400 |
1,59 |
60 |
1,59 |
4,36 |
778 |
26x2ea |
5,000 |
160 |
CW28-S4 |
Φ800 |
26.6 |
369 |
700 |
1,66 |
80 |
1,66 |
4,85 |
106 |
42x2ea |
8,000 |
260 |
|
