Model No. |

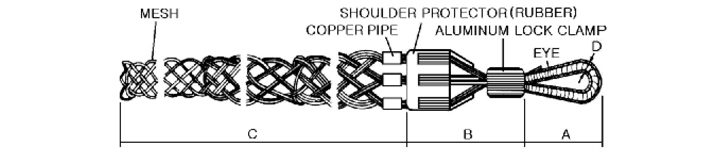

Dimensions(mm) |
Applicable dia. (mm) |
Applicable conductor dia.
(ACSR,mm2)
|
Working
load(kgf)
|
Weight
(kg)
|
| A |
B |
C |
D |
CW64-D1 |
100 |
100 |
750 |
12.6 |
6-9 |
-60 |
1.000 |
1 |
CW64-D2 |
110 |
100 |
800 |
14 |
10-12 |
50-90 |
2.000 |
1.2 |
CW64-D3 |
110 |
110 |
800 |
13 |
12-18 |
80-160 |
3,000 |
1.5 |
CW64-D4 |
110 |
125 |
1200 |
14.5 |
19-25 |
170-330 |
4,000 |
2 |
CW64-D5 |
160 |
160 |
1450 |
18 |
26-32 |
410-520 |
5,000 |
3 |
| CW64-D6 |
160 |
170 |
1600 |
19 |
33-39 |
610-680 |
6,000 |
4 |
| CW64-D7 |
190 |
190 |
1700 |
20 |
40-46 |
TACSR 810~910 |
7,000 |
4.5 |
| CW64-D8 |
260 |
250 |
1900 |
22 |
47-54 |
TACSR Upto 1,000 |
8,000 |
5 |
|
