Model No. |
Dimensions(mm) |
Applicable dia. (mm) |
Applicable conductor dia.
(ACSR,mm2)
|
Working
load(kgf)
|
Weight
(kg)
|

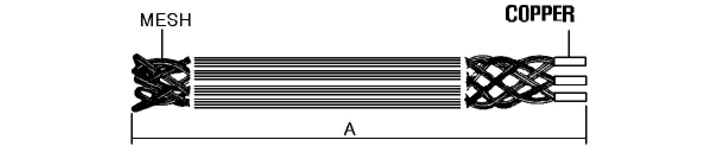

| A |
CW64-M1 |
1,420 |
6-9 |
-50 |
1,000 |
1 |
CW64-M2 |
1,900 |
10-12 |
50-90 |
2,000 |
2 |
CW64-M3 |
2,400 |
13-18 |
80-160 |
3,000 |
2.5 |
CW64-M4 |
2,700 |
20-25 |
170-330 |
4,000 |
3 |
CW64-M5 |
3,000 |
26-32 |
410-520 |
5,000 |
5 |
| CW64-M6 |
3,200 |
33-46 |
610-680 |
6,000 |
7 |
| CW64-M7 |
3,500 |
47-54 |
Up to 1,000 |
7,000 |
8 |
|
