Model No. |
Indicated
dia.
|

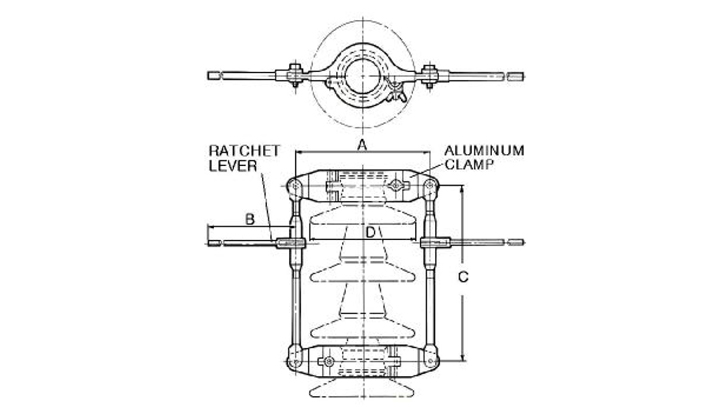

Dimensions(mm) |
Working
load(kgf)
|
Weight
(kg)
|
| A |
B |
C |
D |
CW80A-1 |
Ø254 25,000Lbs |
350 |
380 |
393-468 |
Ø254 |
3,000 |
17 |
CW80A-2 |
Ø280 36,000Lbs |
380 |
380 |
393-468 |
Ø280 |
4,000 |
18 |
CW80A-3 |
Ø320 46,000Lbs |
450 |
392 |
435-560 |
Ø320 |
6,000 |
26 |
CW80A-4 |
Ø360 66,000Lbs |
450 |
392 |
510-635 |
Ø360 |
8,000 |
28 |
|
