Model No. |
Max. rope dia.(mm) |

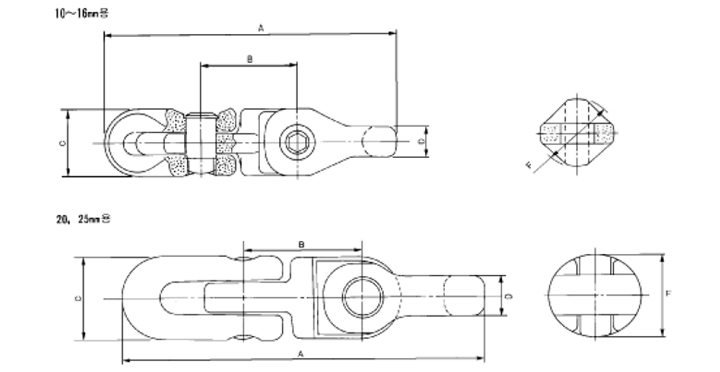

Dimensions(mm) |
Working
load(kgf)
|
Weight
(kg)
|
| A |
B |
C |
D |
F |
CW38-D1 |
Ø10 |
108 |
44 |
32 |
14 |
Ø32 |
1,600 |
0.6 |
CW38-D2 |
Ø14 |
142 |
62 |
42 |
20 |
Ø40 |
3,000 |
1.2 |
CW38-D3 |
Ø16 |
158 |
66 |
46 |
22 |
Ø45 |
4,000 |
1.7 |
| CW38-D4 |
Ø20 |
190 |
80 |
58 |
25 |
Ø58 |
5,000 |
3.0 |
| CW38-D5 |
Ø22 |
220 |
90 |
63 |
40 |
Ø80 |
7,000 |
6.5 |
| CW38-D6 |
Ø24 |
262 |
110 |
80 |
40 |
Ø80 |
8,000 |
8.5 |
|
