| Model No. |
Max. conductor
dia. (㎟)
|
Applicable
AL WHEEL |

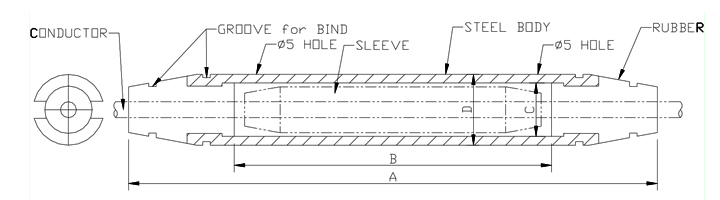

Dimensions(mm) |
Weight(kg) |
| A |
B |
C |
D |
| 1 |
A |
110,80, TACSR79 |
Φ300 |
950 |
680 |
38 |
49 |
4.5 |
| B |
95,90,64,AW100 |
| C |
75,38 st90,70 |
| 2 |
A |
250,240 |
Φ300 |
1150 |
800 |
43 |
55 |
5.3 |
| B |
210,200 |
| C |
170,160 |
| D |
140,120,TASCR120 & 97 |
| 3 |
A |
360,330,320 |
Φ450 |
1350 |
900 |
48 |
60 |
7 |
| B |
290 |
| 4 |
A |
430,420,410,380 |
Φ450 |
1400 |
930 |
60 |
74 |
10 |
| 5 |
A |
680,610 |
Φ600x90W |
1600 |
1100 |
64 |
80 |
17 |
| B |
580,520,480 |
|
