| FEATURES |
|
1. The worker can easily work for stringing cable without cable damage, and high
quality construction can be effected in any site situation.
2. Labor cost can be reduced by only one time working if ever for the stringing
works is needed to work many times.
3. Stringing work is very easy even for working site in vertical, curved and other
difficult situation according to working conditions.
4. The numbers and type of this pulling machine should be considered according to
(1) Length of cable
(2) Cable weight per meter
(3) Situation of working site
(4) Electric power facilities etc.
5. For the multiple stringing works, additionally needed for control box, connector
box, power cable, and stringing roller etc, and these should be advised
by manufacture CHUNGWOO SE prior to use.
6. With this pulling machine, we have been experienced so many big projects in
korea and worldwide. Therefore we thrust that our auto pulling machine can
make excellent cost saving, quality improvement and perfect safety for your
projects. |
|

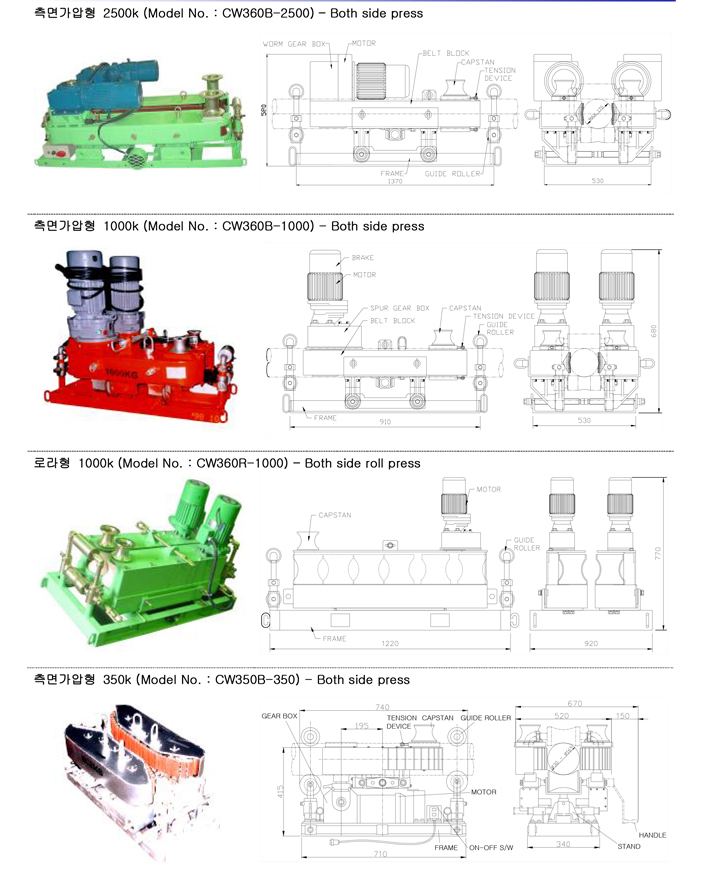

| SPECIFICATION |
|
Model No. |
CW360B-2500 |
CW360B-1000 |
CW360R-1000 |
Type |
Both side press 2500k |
Both side press 1000k |
Both side roll press 1000k |
Max. pulling force |
2,500 kgf |
1,100 kgf |
1,100 kgf |
Max. braking force |
3,000 kgf |
1,300 kgf |
1,200 kgf |
Power |
220V , 60HZ , 3P |
Pulling speed |
5.6 m/min (60hz) |
| Max. cable dia. |
Φ20~Φ160 mm |
| Motor |
3kw,4pole,3phaseX2ea |
1.5kw,4pole,3phaseX2ea |
| Type of cable press |
Both Side pressure |
Both Side pressure |
Both Side pressure |
| Separate q’ty for moving |
5 |
5 |
5 |
| Amp |
14.8 A |
7.4 A |
7.4 A |
| Dimensions(LxWxH) |
1370x530x580 mm |
910x530x680 mm |
1220x920x770 mm |
| Total Weight |
570 kg |
362 kg |
380 kg |
|
| |

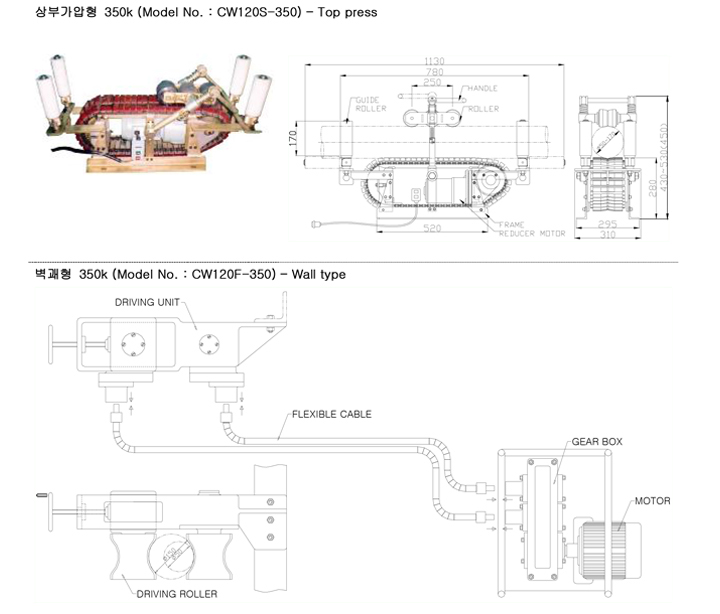

Model No. |
CW350B-350 |
CW120S-350 |
CW120F-350 |
Type |
Both side press 350k |
Top press 350k |
Wall 350k |
Max pulling force |
450 kgf |
350 kgf |
350 kgf |
Max braking force |
0 kgf |
0 kgf |
0 kgf |
Power |
220V , 60HZ , 3P |
Pulling speed |
5.6 m/min (60hz) |
| Max. cable dia. |
Φ20~Φ160 mm |
| Motor |
0.75kw,4pole,3phaseX2ea |
0.4kw,4pole,3phaseX1ea |
3kw,4pole,3phaseX1ea |
| Type of cable press |
Both Side pressure |
Top pressure |
Both Side pressure |
| Separate q’ty for moving |
3 |
2 |
3 |
| Amp |
3.4 A |
1.93 A |
14.6 A |
| Dimensions(LxWxH) |
740x520x415 mm |
740x310x450 mm |
740x480x415/480x460x445 mm |
| Total Weight |
136 kg |
68 kg |
125 kg |
|
| |
1. E/POWER and SPEED changed by order
2. Specification and Size of Motor will be changed without any information
3. Can separate all at moving. |
|
 |
 |
|
 |

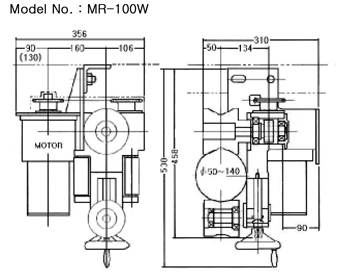

Max. pull |
100 kg |
| Max. speed |
10 m/min |
Weight |
25 kg |
|
|
|
 |

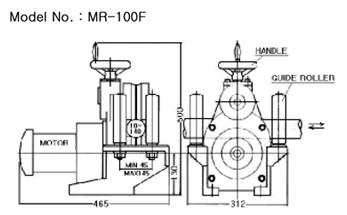

Max. pull |
100 kg |
| Max. speed |
10 m/min |
Weight |
25 kg |
|
|
|
 |

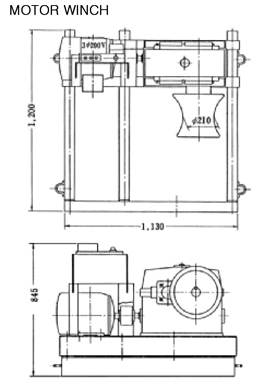

Type |
MW-2 |
MW-4 |
MW-5 |
MW-12 |
Motor |
3phase4P,
1.5kw
|
3phase6P,
3.7kw
|
3phase4P,
5.5kw
|
3phase4P,
11kw |
Reducer |
TS, LD-4,
1/150 |
TS, LD-6,
1/150 |
TS, LD-6,
1/200 |
YM-1050 |
Max. speed |
4.17m/min |
4.45m/min |
4.71m/min |
3~10m/min |
| Weight |
135 kg |
360 kg |
380 kg |
3,500 kg |
|
|
| |
