2WHEEL ANGLE BLOCK > OVERHEAD

2WHEEL ANGLE BLOCK 요약정보 및 구매

This 2WHEEL ANGLE BLOCK is used to lead the conductor up to tower in case of the tower degree is over 30° when stringing works for overhead conductors, and it placed on the tower.

구매상담 및 고객상담 : 043-269-1116

이 분류에 등록된 다른 상품이 없습니다.

상품 상세설명

FEATURES

① Simple structure makes easy assembly.
② Light weight.

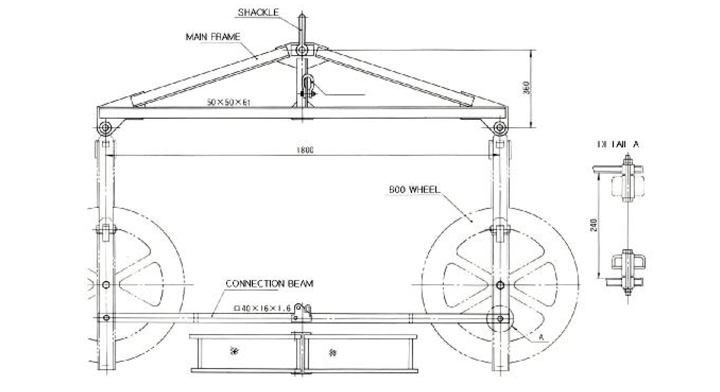

LAY-OUT

SPECIFICATION

  _1. Working load : 5,000 kgf x 2 ea
  _2. Φ600 Wheel   : Model No.: CW16-1
  _3. Neoprene coating or No coating
  _4. Weight : 110 kg
