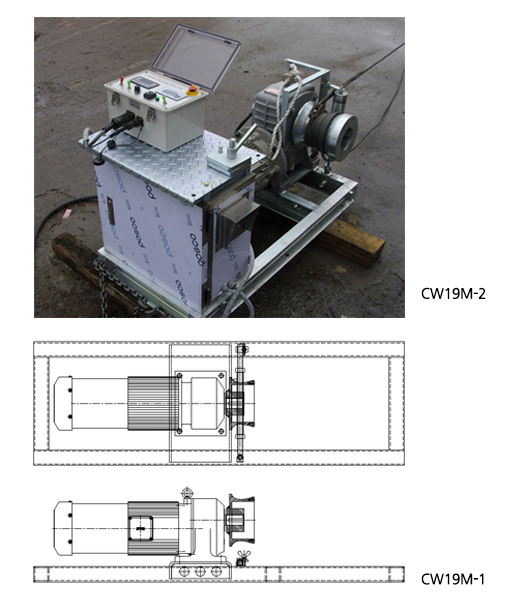

Model No. |
CW19M-1 |
CW19M-2 |
| Type |
Capstan Type (고마타입) |
| Pulling force |
200 kgf |
1,000 kgf |
Max. braking force |
250 kgf |
1,300 kgf |
Power Source |
220V , 60HZ , 1P, 5.9A |
380V , 60HZ , 3P, 13A |
Pulling speed |
Max. 35 m/min |
Max. 12 m/min |
| Dimensions(LxWxH) |
1,200*300*400 |
1,200*600*800 |
| Total weight |
70 kg |
260 kg |
|
