FEATURES

① Bending for big cable at manhole or narrow path is possible.
② Light and small size are suitable to work safety and to reduce working cost.
③ One worker can easily operate as auto drive system.
④ Bending can be in 3 steps operation.
⑤ Midium step operatable for 3 steps operation.br> ⑥ Side touch plate was produced to prevent cable increase.
⑦ Bending speed adjustable.

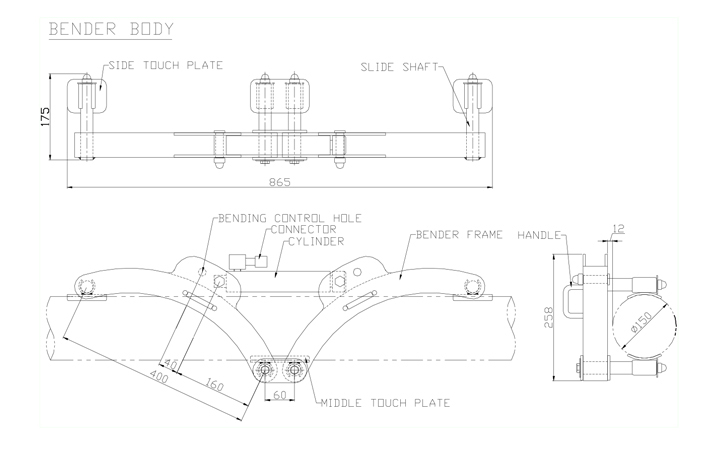

LAY-OUT

SPECIFICATION

1. Bender Body
1) Max. cable dia. : 2000 mm2
2) Min radial : 1100 mm
3) Max. radial : 3400 mm
4) Max. cable out dia. : 160 mm
5) Dimensions(LxWxH) : 865 x 175 x 258mm
6) Weight : 17 kg

2. Pump
1) Maker : ENERPAC
2) Model No. : PUJ-1200E
3) Motor voltage : 230 V, 50 cycle
4) Remote motor control : 24 V dc
5) Dimensions(LxWxH) : 244x244x362 mm
6) Weight : 10 kg

3. Hose
1) Inside dia. : 6.4 mm 1 Roll
2) Length : 5 m
3) Max. operating pressure : 700 kg/㎠
4) Weight : 2.3 kg
